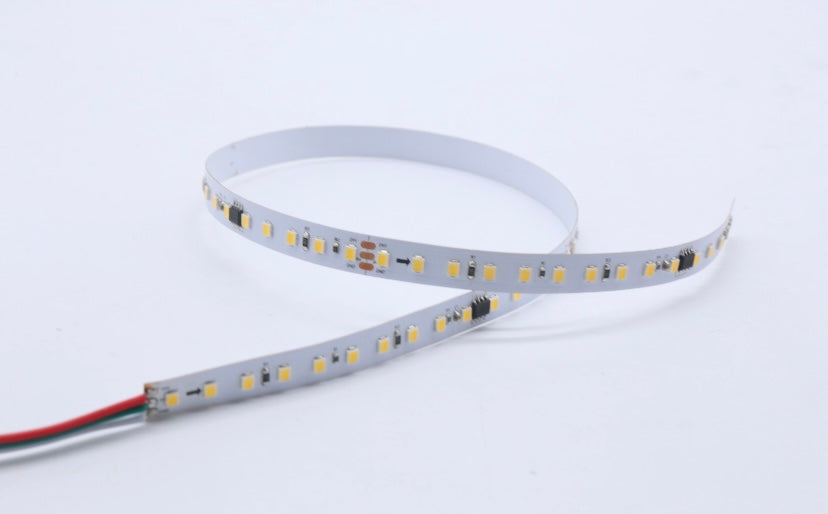

Aluminium profileFor a neat, diffused, professional finishView range →The Leading24-PIX5 is a 24V pixel chasing LED strip in natural white (4000K) with 8 controllable pixels per metre for running and flowing light effects. It delivers 1,029 lumens per metre at 14W/m, can be cut every 125mm and is fully dimmable, with a 5-year warranty. Sold per metre from £12.95 ex VAT (£15.54 inc VAT).
- Priced per metre – up to 5m ships as one continuous length
- Max run 5m from one end
- Cut-to-measure with soldered tails available
- UK technical support by phone or WhatsApp
What is pixel chasing LED strip?
Pixel chasing strip is a single-colour strip with 8 individually controlled segments per metre. With a compatible controller you can create running, flowing and sequential lighting effects in natural white (4000K) – popular for signage, bars, gyms, cinemas and stair lighting.
Specifications
| Part number | LS24PIX-120-NW5 |
|---|---|
| Colour | 4000K natural white |
| Light output | 1,029 lumens per metre |
| Power | 14W per metre |
| Voltage | 24V DC constant voltage |
| LED density | 120 LEDs per metre |
| Pixels | 8 controllable pixels per metre |
| Strip width | 10mm |
| Cut points | Every 125mm |
| Maximum run | 5m from one end |
| IP rating | IP20 (indoor, dry locations) |
| Dimming | Effects and brightness via a compatible pixel controller |
| Backing | Heavy-duty 3M adhesive |
| CRI | High – accurate colour rendering |
| Lifespan | Up to 50,000 hours |
| Warranty | 5 years |
Where to use it
- Signage and shopfronts
- Bars, casinos and restaurants
- Gyms and sports halls
- Theatres and cinemas
- Stair and corridor sequences
- Feature lighting with movement
Installation
Installation is simple and designed for a secure, long-lasting fit. The high-bond adhesive backing grips firmly on clean, dry surfaces. For the best finish and heat management, house the strip in an aluminium profile with a diffuser. Use a 24V constant voltage LED driver and a compatible pixel controller.
What size driver do I need?
Choose a 24V driver so the strip uses no more than 80% of its rated power. Add up the total length of all strips sharing one driver.
| Driver | Maximum strip length @ 14W/m |
|---|---|
| 20W – 24V | Up to 1.1m |
| 30W – 24V | Up to 1.7m |
| 40W – 24V | Up to 2.2m |
| 50W – 24V | Up to 2.8m |
| 75W – 24V | Up to 4.2m |
| 100W – 24V | Up to 5m (max run) |
Working out your load: 5m × 14W/m = 70W. 70W ÷ 24V = 2.92A. Cable: 0.5mm² up to 3A · 0.75mm² up to 6A · 1.0mm² up to 8A.
How it is supplied
- Priced per metre. Orders up to 5 metres are dispatched as one continuous, uncut length unless you specify otherwise.
- Orders longer than 5 metres are dispatched in 5m reels, each powered separately, unless you specify otherwise.
- Need specific lengths? Order cut-to-measure strip with soldered tails, or add your lengths and tail details in the special instructions box at checkout.
- Runs over 5m? Contact us and we'll help you plan the best setup.
Important: handling and installation
Pixel LED strip is sensitive to static and needs careful handling. Please follow these steps to avoid damage:
- Isolate the mains power before handling the strip. The remote control switches the lights off but does not disconnect the power.
- Test the strip when it arrives, before you remove the 3M adhesive backing or mount it.
- Handle soldered joints with care. Support the cable tails at all times and keep soldered connections from touching each other.
Full installation instructions are included with your order. Need help? Call our technical team on 02476 262 328.
Frequently asked questions
How bright is this strip?
It produces 1,029 lumens per metre at 14W per metre.
What size driver do I need for 5 metres?
5m at 14W/m is a 70W load, so choose a 24V driver rated at least 88W. See the driver table above.
Does it need a special controller?
Yes. To create chasing and flowing effects it needs a compatible digital (SPI) pixel controller. Our team can recommend the right controller for your project.
How long can a single run be?
Up to 5m when powered from one end. For longer runs, use additional power feeds.
Can I cut the strip to size?
Yes, every 125mm.
Is it priced per metre?
Yes. Add as many metres as you need to your cart – from £12.95 per metre ex VAT.
Will my order come as one length?
Yes – orders up to 5 metres are dispatched as one continuous length unless you specify otherwise. For bespoke lengths with soldered tails, choose the custom length option or contact us.
Can I use it outdoors or in a bathroom?
No. This strip is IP20, for indoor dry locations only. For wet areas choose an IP55 or IP67 strip.
What warranty does it have?
5 years, with a rated lifespan of up to 50,000 hours.
