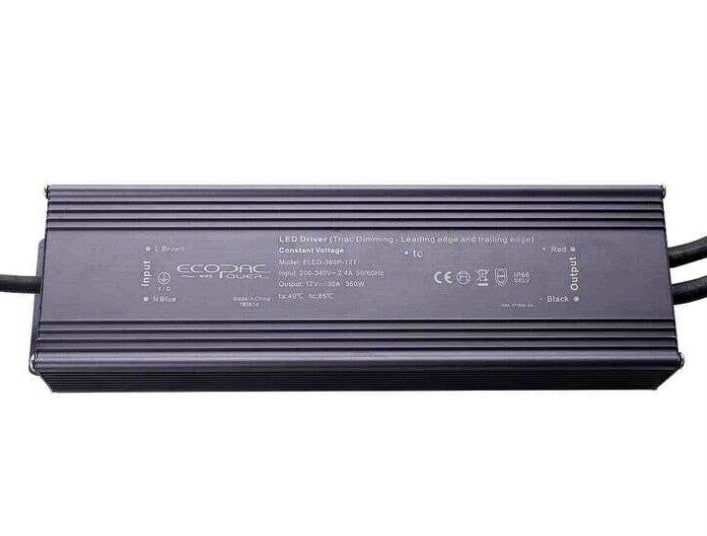

24 volt Dimmable power supply for LED strip lights
ELED-360P-T Series Features:
Constant voltage/ PWM Output
Leading & Trailing edge dimmable
Other features:
- AC input: 200-240VAC
- Built-in active PFC function
- Efficiency up to 89%
- Protections: Short circuit/ Over load/Over temperature/Over Current
- Cooling by free air convection
- IP66 design
| Wattage | 360 | |
| Input Voltage | 200-240VAC | |
| Output Current | 15A | |
| Output Voltage | 24V | |
| Output Voltage Options | Single | |
| DC output adjustment | N/A | |
| Dimensions | 276 x 78 x 47 | |
| Working Temperature | -40 - +60°C | |
| Safety Standards | EN61347-1, EN61347-2-13, IP66 | |
| EMC Standards | Compliance to EN55015, EN61000-3-2, 3 (>60%load), EN61000-4-2,3,4,5,6,11, EN61547 | |
The 24 volt Dimmable power supply | LP-360-24PT | LED driver for LED strip is evocative, to say the least, but that's why you're drawn to it in the first place.
