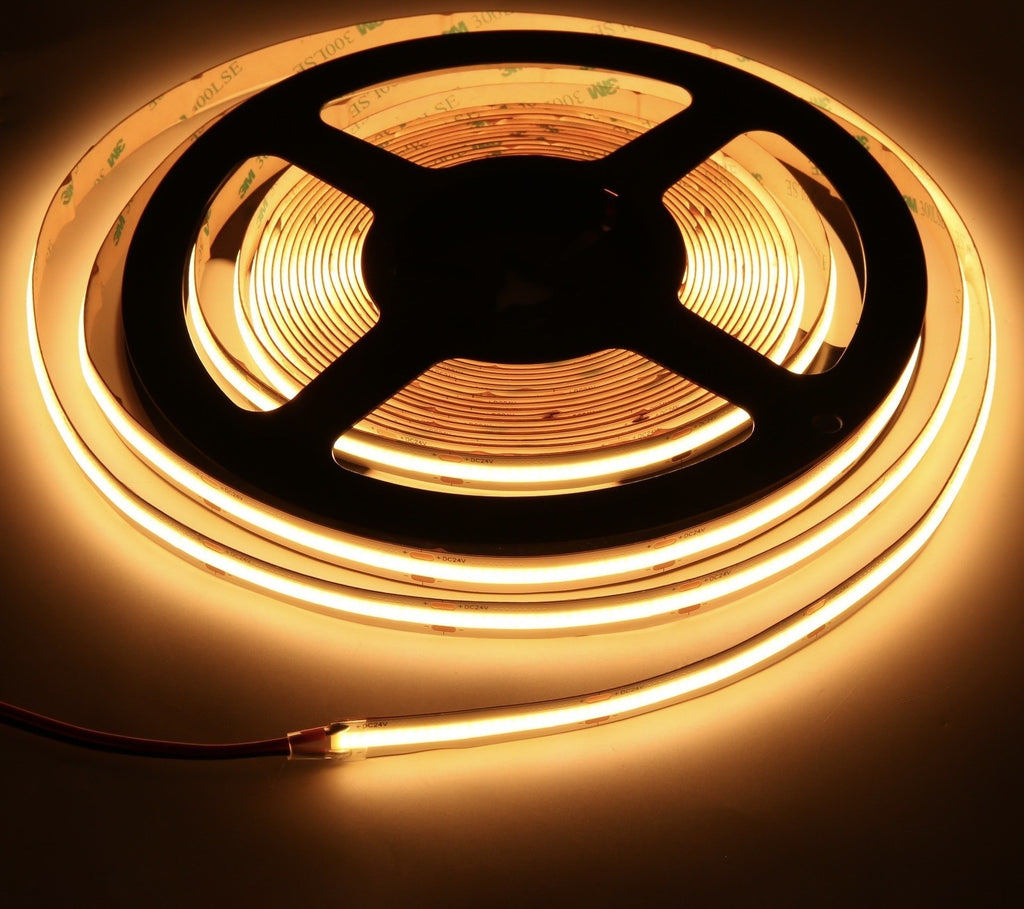

24v Seamless COB strip Pro cool | Leading24-Pro-COB | 10w/m | 480 LEDS/m - Dotless

Excluding VAT
  • Sale
  • Regular price £9.95
Shipping calculated at checkout.



24v Seamless COB strip Pro cool - The right choice for all visible areas such as walls and ceilings.



Leading24-Pro/COB - The right choice of strip for longer run lengths. Power for up to 20 metres from one end.

A seamless, completely dotless, high-performance, world-class lighting solution with 480 LEDs/m for bright, dimmable, consistent illumination.

Customisable to suit all Domestic | Commercial projects.

LED strip light specification
UL, TUV CE, CB Approved.
24v Seamless COB strip Pro cool Colour temperature: Cool white 6000k



Part number  LS24-PRO/COB-480-CW
Brightness level

High brightness.

Recommended installation  Dotless LED strip for use on visible areas such as walls & ceilings.
IP rating IP20
Lumen Output 1125 Lumens /m.
Dimmable

Yes. Compatible with various control systems.

Options:

  • Utilise our selection of wireless wall/hand held smart controllers. Dim the strip down, turn on/off, set scenes for various areas.
  • TRIAC mains dimmable driver for use with leading and trailing edge TRIAC dimmers.
Wattage  10 w/m.
Voltage  24V. Constant voltage.
LED quantity  480 LEDS /m.
Width of strip

10mm.

Backing tape  Heavy duty 3M. Secure neatly onto clean surface.
Maximum linear run length capacity 20 Metres - powered from one end.
CRI (Colour rendering Index) High: Rendering colours more realistically.
Lifespan  Up to 50,000 hours.
Cut points on the strip  Every 50mm - cut to measure.
Warranty  5 years.



Shop bespoke options here


SUPPORT:

How to contact us:
Telephone: 02476 262 328
Email: sales@leadingled.co.uk
Connect with us on live chat

Select compatible power supply (LED driver) based on length of LED strip  (NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply)
Up to 1 metre > LPM-20-24
1.5m - Max load 2 metres > LPM-40-24
2.5m  - Max load 5 metres > LPM-75-24
5.5m - Max load 8 metres  > LPM-100-24
8.5m - Max load 12 metres.  NB: Maximum single run length of LED strip - 20 metres.  Power additional lengths separately when using a shared power supply.   > LPM-150-24
16.5 metres - Max load 20 metres NB: Maximum single run length of LED strip - 20 metres.  Power additional lengths separately when using a shared power supply.   >LPM-320-24



Required components

Soldered 2 core cable tail.

Always select the correct cable for your project ensuring efficient current flow & optimal performance.

Quick calculation:

24v Seamless COB strip Pro cool

1. Multiply the amount of metres of strip by the wattage:

e.g. 5m strip (@10w/m) 5 x 10 = 50 watts

2. Now divide 50 by 24 (24v)= 2.083A

0.5mm cable capacity  = 3A

0.75mm cable capacity = 6A

In this example - 0.5mm cable is the suitable 2 core cable option for cable tails up to 3m in length, with the recommendation to use 0.75mm cable for longer required cable tails ensuring more efficient current flow, optimal performance & preventing voltage drop.

Link to 2 core cable >





Optional compatible components
Smart controller

Wall controller - Set scenes, dim the strip, turn on/off.

Hand held remote Set scenes, dim the strip, turn on/off.

Wifi controller  - For use with smart phone. Set various scenes, dim the brightness, turn on/off.

Smart controller>

Aluminium housing

House LED strip in profile - Diffusion of light, heat dissipation & professional finish.

Aluminium housing>



SPECIFICATION:

 Priced by the metre for a maximum single run length of 20 metres -  (If longer run lengths over 20 metres are required, contact us for advice on how best to install this).

 LED strip is dispatched as one continuous length as per order quantity  - Uncut, unless otherwise stated.

 Cut to measure with soldered cable tails -  Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).

24v Seamless COB strip Pro cool

24v Seamless COB strip Pro cool
24v Seamless COB strip Pro cool





The 24v Seamless COB strip Pro cool | Leading24-Pro-COB | 10w/m | 480 LEDS/m - Dotless is a sensational customer favorite, and we hope you like it just as much.
