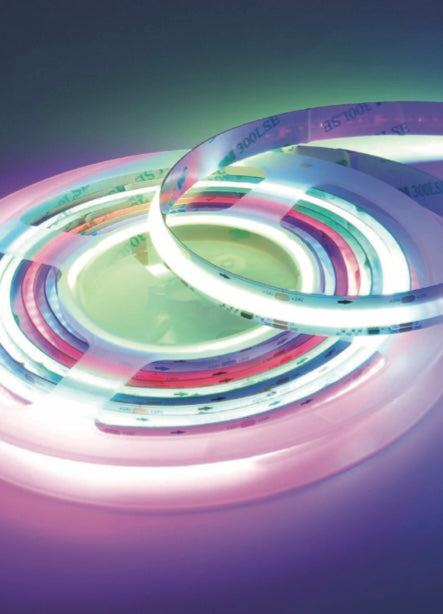

24v RGB Digital Seamless COB LED strip.
Leading24-RGB-DIGITAL-COB delivers world-class performance & unparalleled lighting quality. Designed with an impressive 720 LEDs per metre for a completely dot less colour changing, chasing light when housed in profile.
Customisable to suit any Domestic | Commercial project.
| LED strip light specification |  |
||
| 24v RGB Digital Seamless COB LED strip | Colour temperature RGB. |
|
|
| Part number |
LS24-RGB-DIGITAL-COB-720|IP20 |
||
| Brightness level |
High brightness. |
||

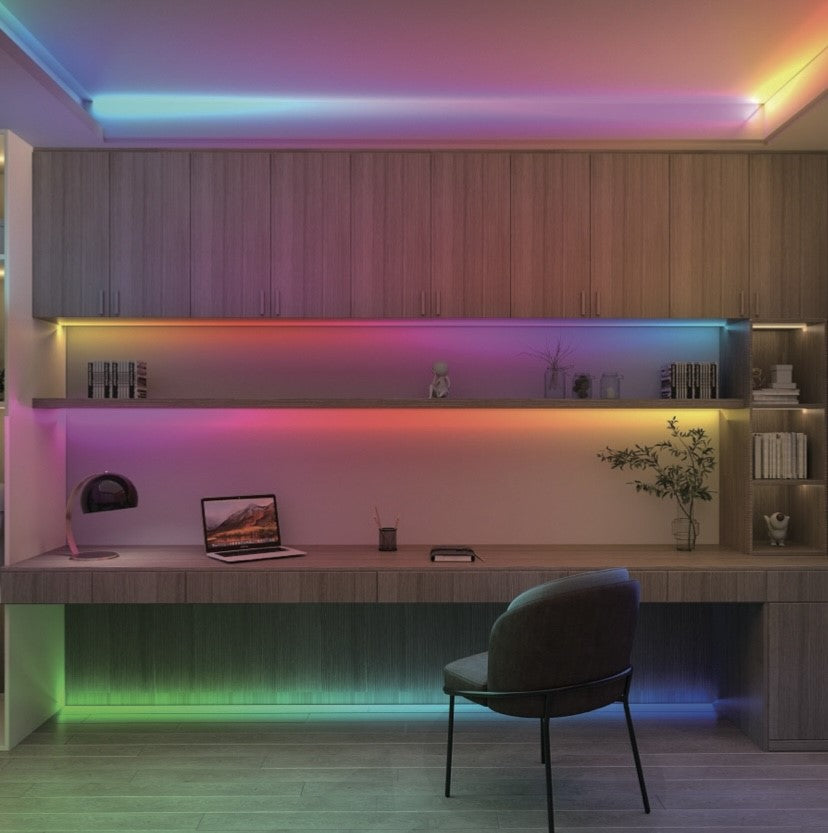

| Recommended installation | Cinema, theatre, gym, casino, restaurant and other domestic | commercial space. | ||
| IP rating | IP20 | ||
| Dimmable | Yes. Compatible with various control systems | ||
| Wattage | 20 w/m. | ||
| Voltage | 24V. Constant voltage. | ||
| LED quantity | 720 LEDS /m. 20 Pixels /m | ||
| Width of strip |
12mm. |
||
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | ||
Maximum linear run length capacity of part number:
|
5 metres. | ||
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | ||
| Lifespan | Up to 50,000 hours. | ||
| Cut points on the strip | Every - cut to measure. | ||
| Warranty | 5 years. |
When selecting 5 metres in one single run length this will be dispatched on a 5 metre reel, complete with 2 metre soldered tail and protective heat shrink (Select Quantity 5). For alternative measurements, cut to measure & additional customisation, select your quantity and click on bespoke options below:
Shop bespoke options here
SUPPORT:
| Select compatible power supply (LED driver) based on length of LED strip | (NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply) |
| Up to 1 metre | |
| 1.5m - Max load 2 metres | 40W-24V |
| 2.5m - Max load 5 metres | 100W-24V |
| 5.5m - Max load 8 metres | 200W-24V |
| 8.5m - Max load 12 metres. NB: Maximum single run length of LED strip - 5 metres. Power additional lengths separately when using a shared power supply. | 320W-24V |
| Required components |
Soldered 4 core cable tail. RGB Digital Controller |
| Compatible components | |
| Smart controller |
Hand held remote - Colour change, set scenes, dim the strip, turn on/off. Smart controller> |
| Aluminium housing |
House LED strip in profile - Diffusion of light, heat dissipation & professional finish. |
SPECIFICATION:
Priced by the metre for a maximum single run length of 5 metres - (If longer run lengths over 5 metres are required, contact us for advice on how best to install this).
LED strip is dispatched as one continuous length as per order quantity -Uncut, unless otherwise stated.
Cut to measure with soldered cable tails - Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).
24v RGB Digital Seamless COB LED strip
Inventory Last Updated: Apr 22, 2025
