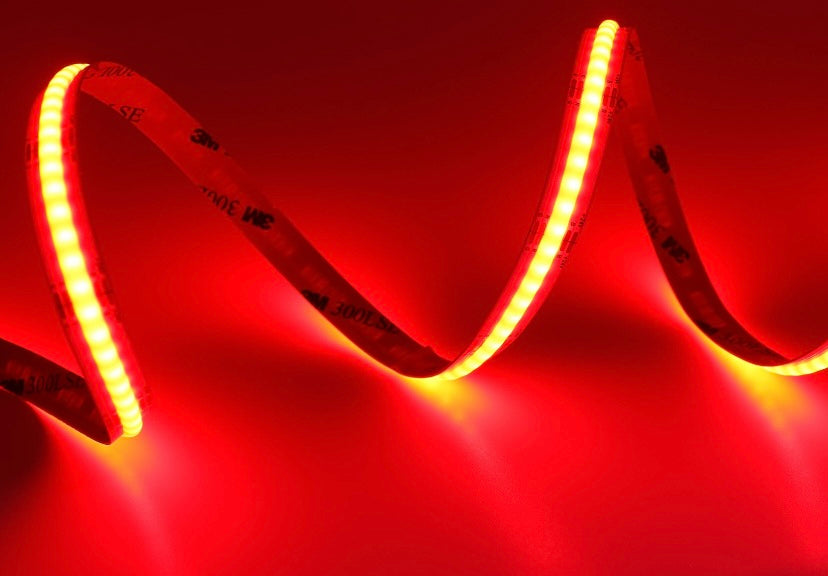

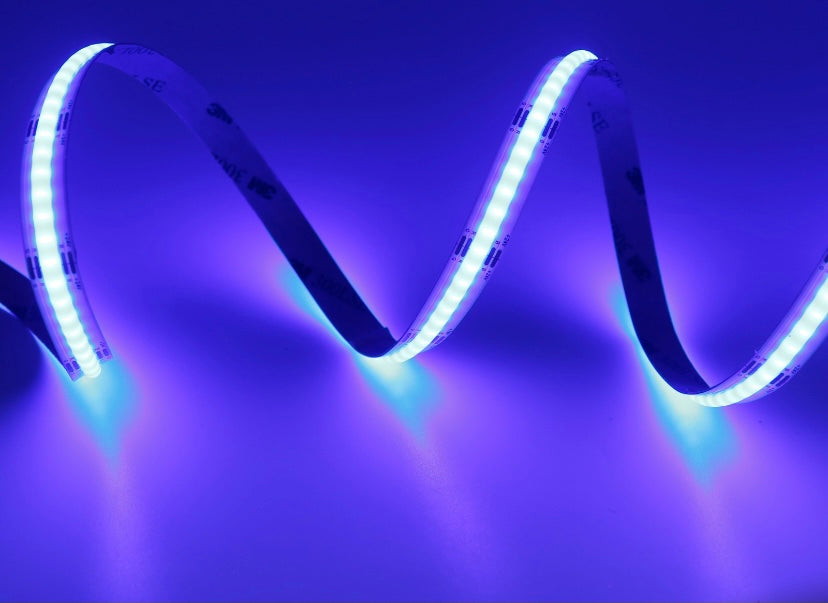

24v RGB COB strip.
Leading24-COB-RGB boasts an impressive 672 LEDs per metre featuring colour changing chips. A world-class, dot less lighting solution for accents in visible areas such as walls and ceilings.
This strip delivers a powerful combination of bright and vibrant colours that can be programmed to meet any creative domestic & commercial lighting solution.
Customisable to suit any Domestic | Commercial project.
|
Priced per metre Delivery - Made to measure |
Up to 3 business days following payment of invoice. |
| Delivery - Off the reel |
Order by 1pm for next business day via UPS. |
| LED strip light specification |  |
||
| RGB Colour changing COB strip - Red, green & blue. | Colour temperature RGB. |
|
|
| Part number | LS24-RGBCOB-672 - Leading24-COB-RGB | ||
| Brightness level |
High brightness. |
||

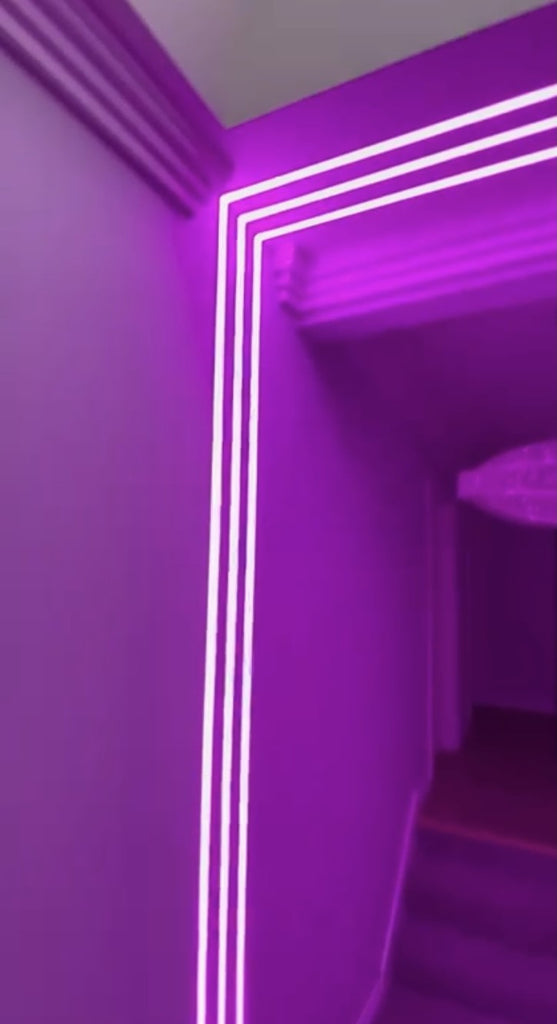

| Recommended installation | Developed with 672 LEDS per metre for lower spotting effect for use on visible areas such as walls & ceilings. Lounge, bedroom, roof lantern, kitchen, bar, restaurant, gym, sensory room, casino, theatre, cinema room. | ||
| IP rating | IP20 | ||
| Dimmable | Yes. Compatible with various control systems | ||
| Wattage | 13 w/m. | ||
| Voltage | 24V. Constant voltage. | ||
| LED quantity | 672 LEDS /m. | ||
| Width of strip |
10mm. |
||
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | ||
Maximum linear run length capacity of part number:
|
5 metres. | ||
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | ||
| Lifespan | Up to 50,000 hours. | ||
| Cut points on the strip | Every 31.25mm - cut to measure. | ||
| Warranty | 5 years. | ||
| Select compatible power supply (LED driver) based on length of LED strip | (NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply) |
| Up to 1 metre | > LPM-20-24 |
| 1.5m - Max load 2 metres | > LPM-40-24 |
| 2.5m - Max load 5 metres | > LPM-100-24 |
| 5.5m - Max load 8 metres | > LPM-150-24 |
| 8.5m - Max load 12 metres. NB: Maximum single run length of LED strip - 5 metres. Power additional lengths separately when using a shared power supply. | > LPM-200-24 |
| 12.5m - Max load 18 metres. NB: Maximum single run length of LED strip - 5 metres. Power additional lengths separately when using a shared power supply. | >LPM-320-24 |
| Required components |
Soldered 4 core cable tail. RGBW Receiver unit Controller - Wall | hand held remote 24v Power supply (LED driver) |
|
|
|
| Compatible components | |
| Smart controller |
Wall controller - Colour change, set scenes, dim the strip, turn on/off. Hand held remote - Colour change, set scenes, dim the strip, turn on/off. Wifi controller - For use with smart phone. Colour change, set various scenes, dim the brightness, turn on/off. |
| Aluminium housing |
House LED strip in profile - Diffusion of light, heat dissipation & professional finish. |
| 20-40 Metres | £14.86 + VAT per metre |
| 41-60 Metres | £14.08 + VAT per metre |
| 61 + Metres | £13.30 + VAT per metre |
SPECIFICATION:
Priced by the metre for a maximum single run length of 5 metres - (If longer run lengths over 5 metres are required, contact us for advice on how best to install this).
LED strip is dispatched as one continuous length as per order quantity - Uncut, unless otherwise stated.
Cut to measure with soldered cable tails - Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).
Enrich your area with Leading24-RGB/COB
