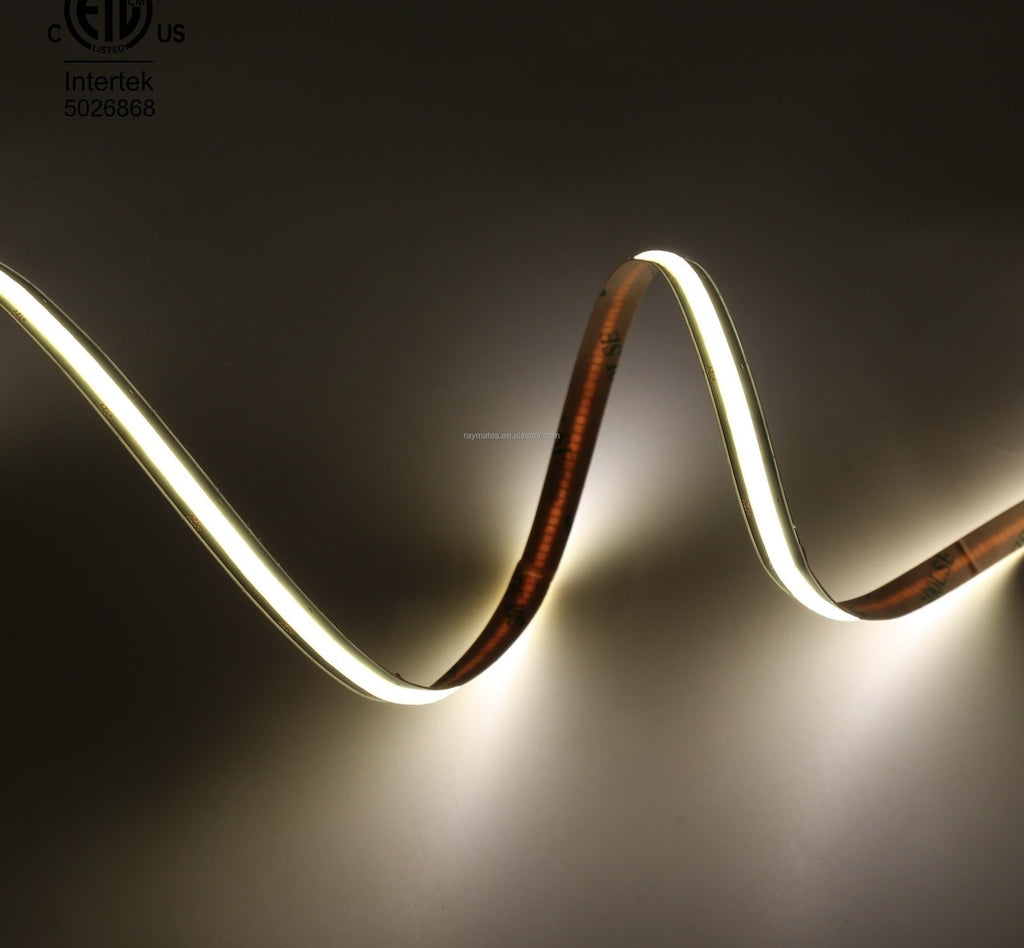

24v Dotless COB strip natural free cutting - CUT & SOLDER ANYWHERE ALONG THE STRIP!
Leading24-COB-FC - An expertly designed lighting solution. With a density of 528 LEDs/m, this range provides full, uniform illumination.
The unique free cutting feature allows for easy, accurate customisation, matching your exact measurements - the ideal choice of strip for intricate, cut-to-measure projects.
High-end, world-class lighting - Ideal for both residential and commercial applications - The right choice for all visible areas such as walls and ceilings.
| LED strip light specification |
UL, TUV CE, CB Approved. |
|
| 24v Dotless COB strip natural free cutting | Colour temperature: Natural white 4000k |
|
| Part number |
LS24-COB-528-NW-FC |
|
| Brightness level |
High brightness. |
|
| Recommended installation | Dotless LED strip for use on visible areas such as walls & ceilings. | |
| IP rating | IP20 | |
| Lumen Output | ||
| Dimmable |
Yes. Compatible with various control systems. Options:
|
|
| Wattage | 10 w/m. | |
| Voltage | 24V. Constant voltage. | |
| LED quantity | 528 LEDS /m. | |
| Width of strip |
8mm. |
|
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | |
| Maximum linear run length capacity |
5 metres powered from one end. 10 metres powered from both ends or from the centre. |
|
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | |
| Lifespan | Up to 50,000 hours. | |
| Cut points on the strip | Free cutting - cut anywhere along the strip. Solder anywhere along the strip. | |
| Warranty | 5 years. |
| Required components |
Soldered 2 core cable tail. Always select the correct cable for your project ensuring efficient current flow & optimal performance. Quick calculation:
1. Multiply the amount of metres of strip by the wattage: e.g. 5m strip (@10w/m) 5 x 10 = 50 watts 2. Now divide 50 by 24 (12v)= 2.083A 0.5mm cable capacity = 3A 0.75mm cable capacity = 6A
|
| Optional compatible components | |
| Smart controller |
Wall controller - Set scenes, dim the strip, turn on/off. Hand held remote - Set scenes, dim the strip, turn on/off. Wifi controller - For use with smart phone. Set various scenes, dim the brightness, turn on/off. |
| Aluminium housing |
House LED strip in profile - Diffusion of light, heat dissipation & professional finish. |
SPECIFICATION:
Priced by the metre for a maximum single run length of 5 metres - (If longer run lengths over 5 metres are required, contact us for advice on how best to install this).
LED strip is dispatched as one continuous length as per order quantity - Uncut, unless otherwise stated.
Cut to measure with soldered cable tails - Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).
